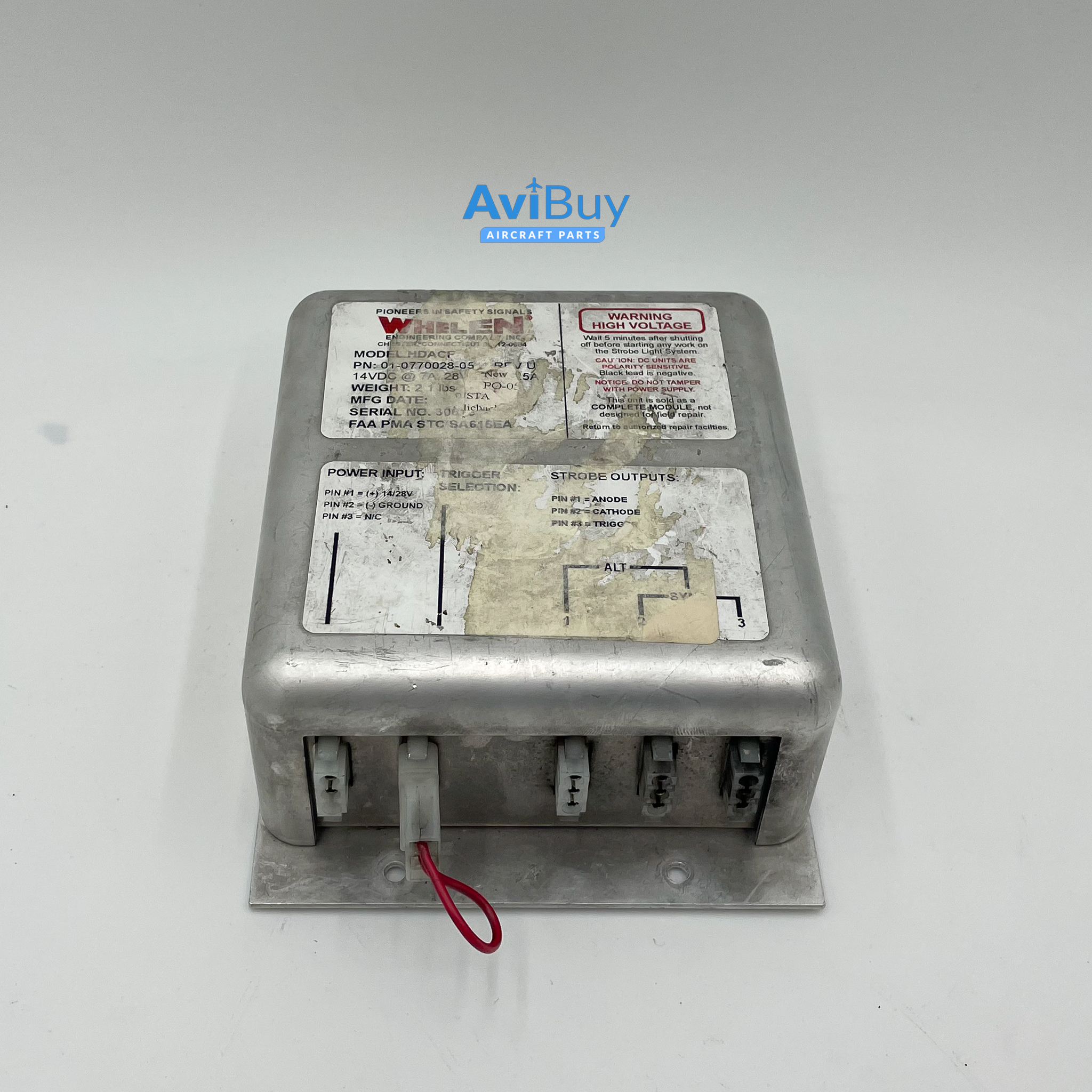

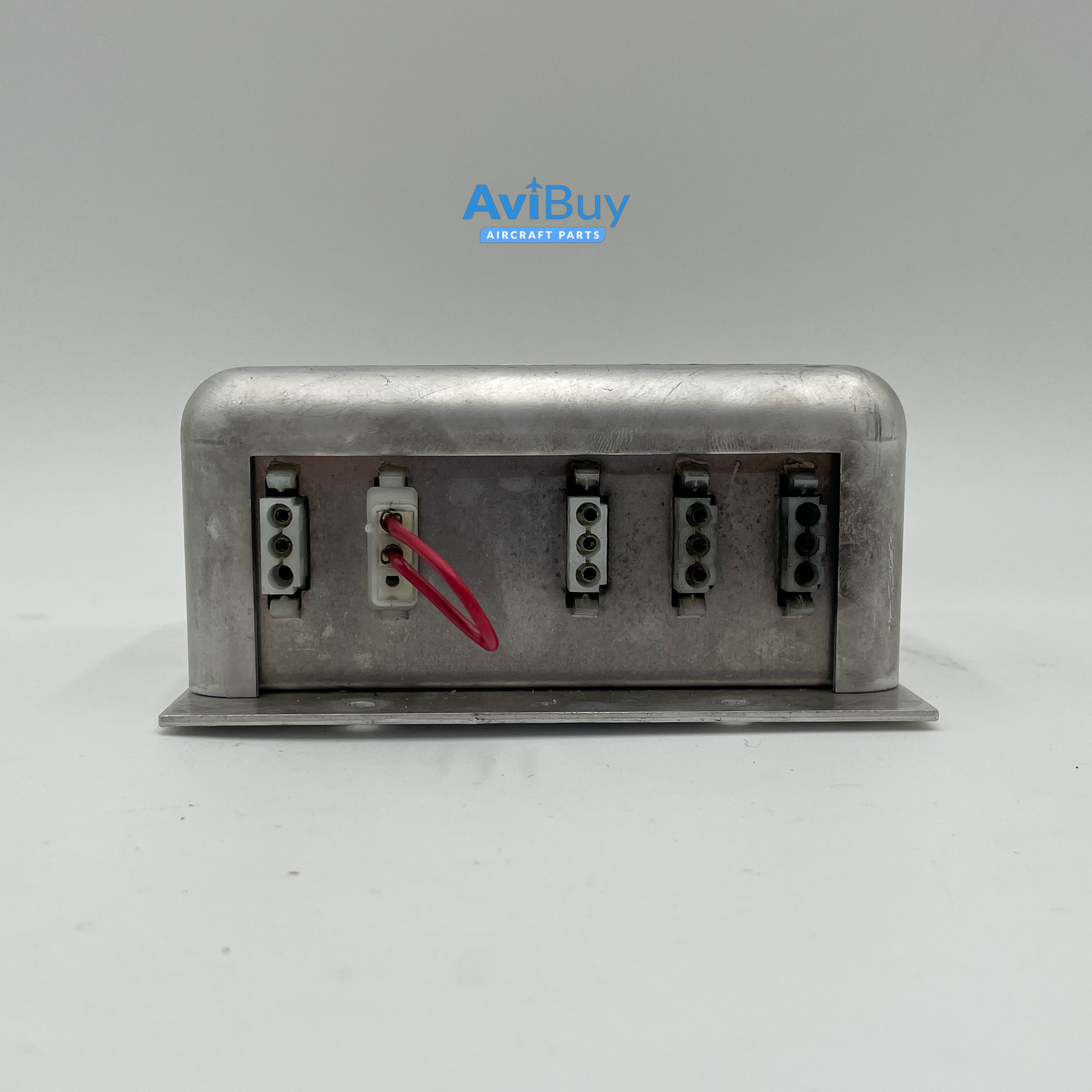

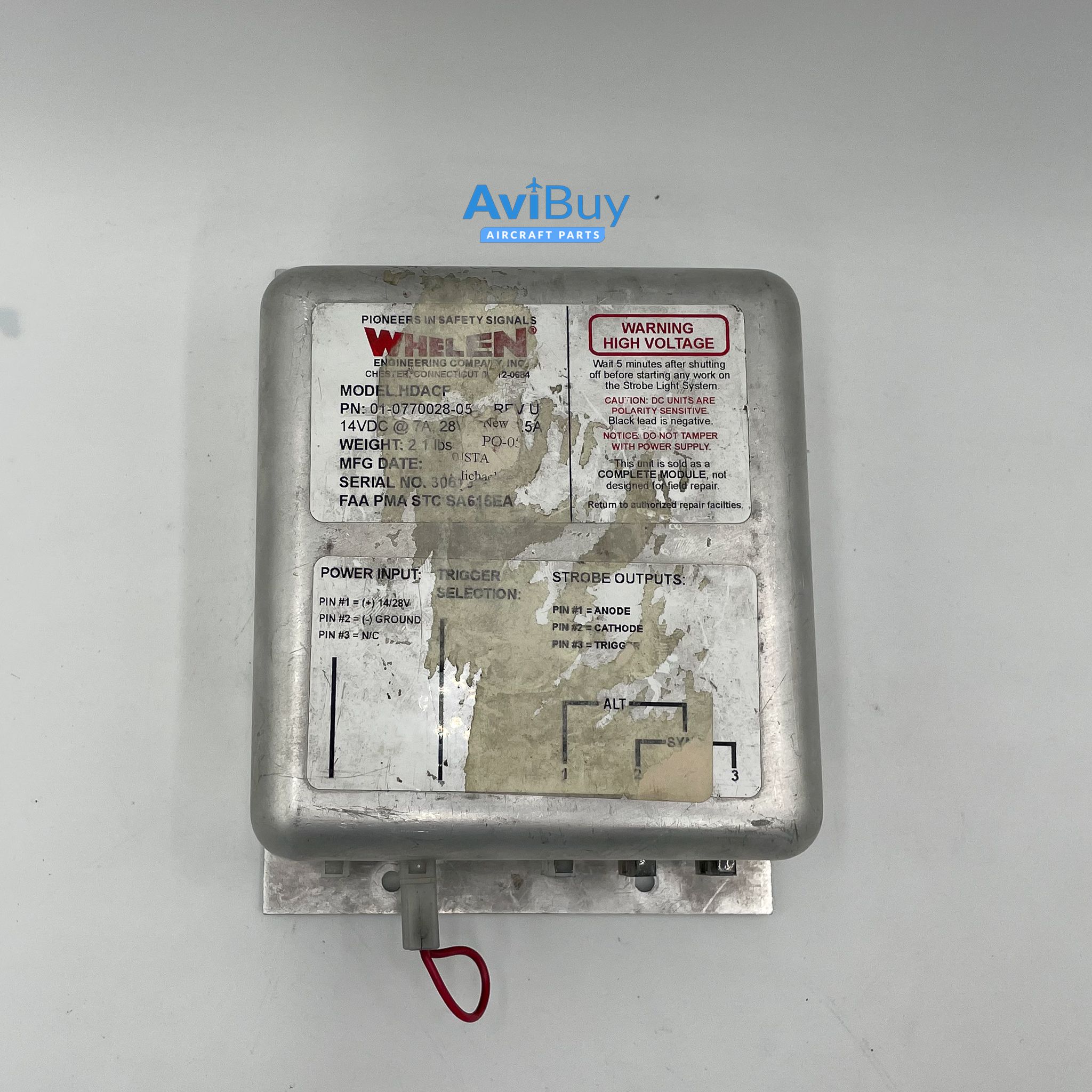

01-0770028-05 POWER SUPPLY

01-0770028-05

• The HDACF series provides simultaneous, alternate, or both flashing modes.
• It operates one, two, or three strobe lightheads.
• Wing tip strobes in alternating mode receive 42 joules each.
• Wing tip strobes in simultaneous mode receive 21 joules each.
• In three-light mode, wing tips flash simultaneously at 21 joules each, alternating with a third light at 42 joules.
• A switch on the trigger selector outlet can turn off wing tip outlets 2 & 3 while tail outlet 1 remains on.
• This function is used for ground operations.
• The power supply operates from 10 to 30 VDC.
• The model number is 01-0770028-05.

Model No. 01-0770028-05
